Penza Factory Electromechizmerenie (EMI)

Product: 6052.3829-04

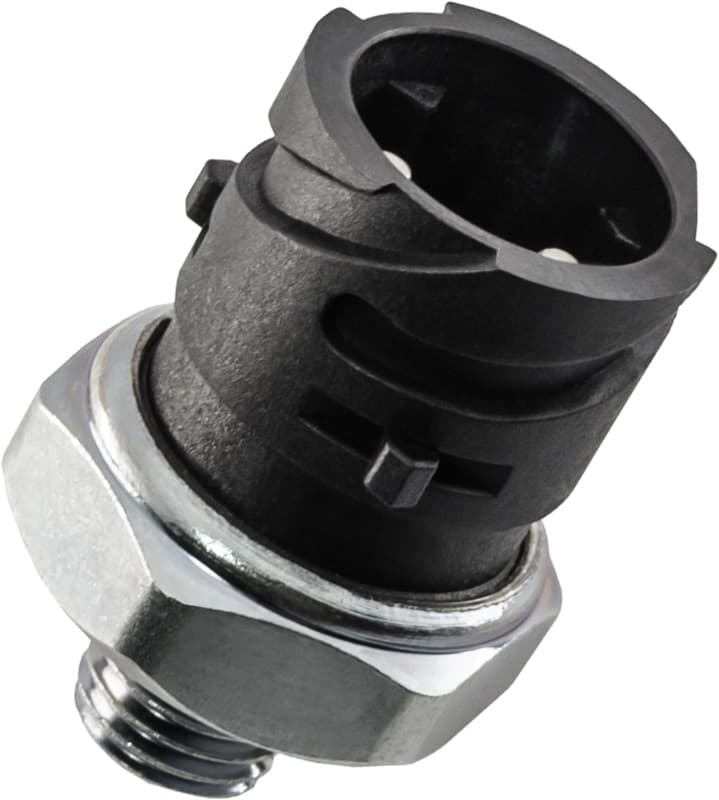

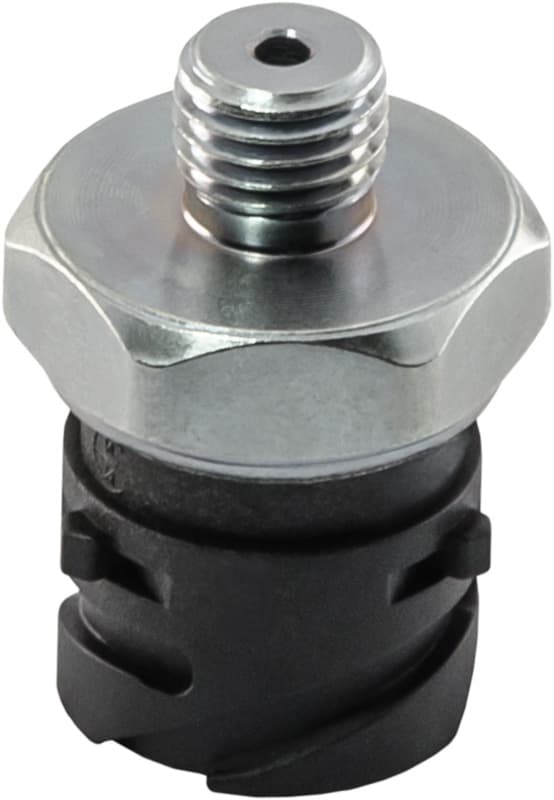

oil/air pressure alarm sensor with bayonet connector

Specifications

used in
customer’s equipment
contact
normally closed (NC)
trigger pressure
from 0.3 to 1.2 kgf/cm² upon request
current
from 0.02 to 0.5 A
mass
40 g
screw-thread
K1/4" GOST 6111 (NPT 1/4)
M12×1.5
M14×1.5
M16×1.5
M18×1.5
spanner
27
nominal switching voltage
12 VDC, 24 VDC
