Penza Factory Electromechizmerenie (EMI)

Product: 6072.3829-08

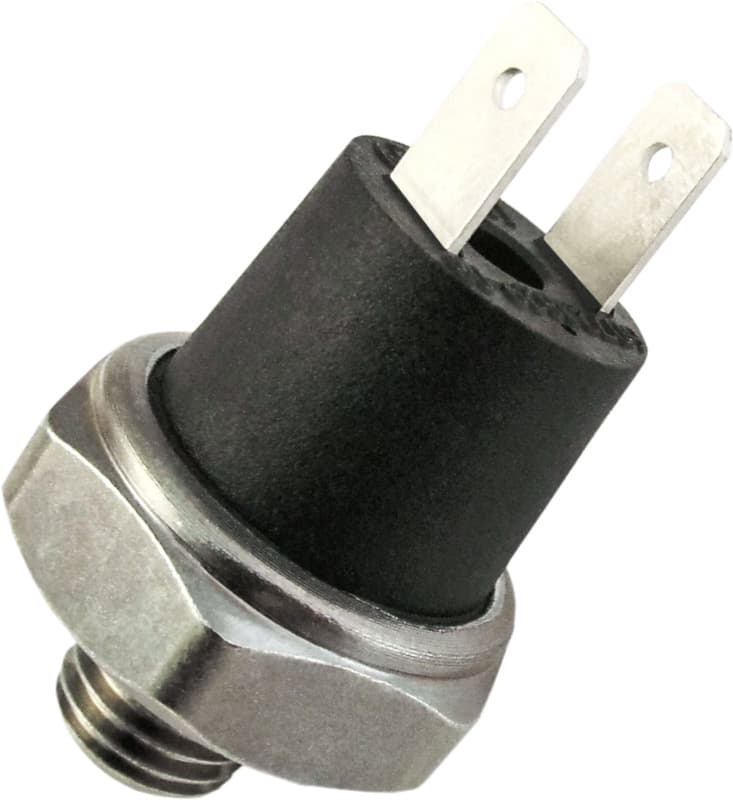

oil pressure alarm sensor

Specifications

used in
GAZon Next E6 and PAZ Vector E6 with ADAS, customer’s equipment
contact
normally open (NO)
trigger pressure
from 0.3 to 7.0 kgf/cm² upon request
mass
47 g
maximum load pressure
20 kgf/cm²
screw-thread
M12×1.5 (other types are also available on demand)
spanner
27
compatible connector
965430-1
circuit type
circuit type: A
