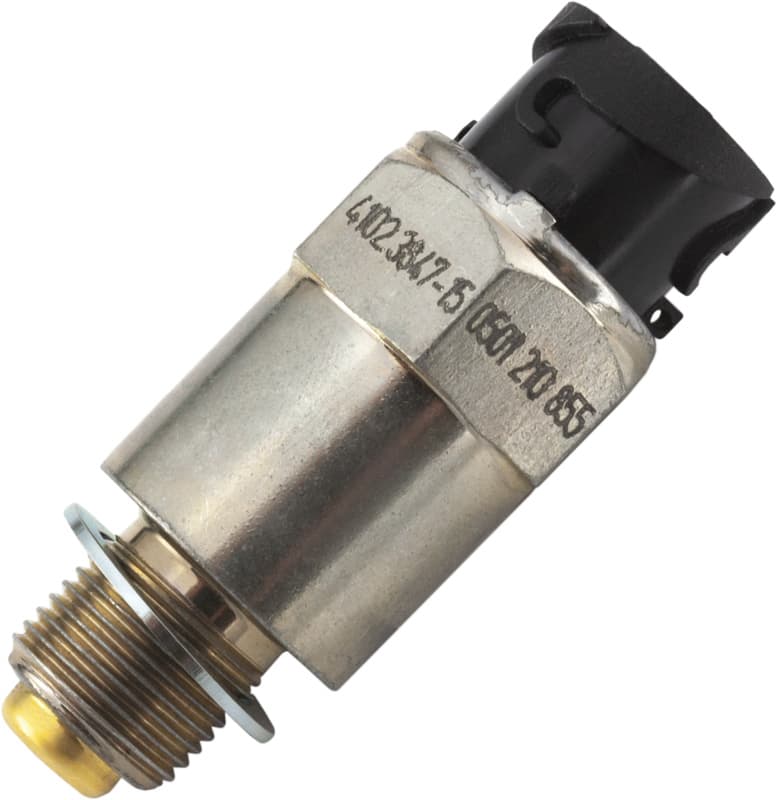

Product: 4102.3847-15
speed sensor
approximate wholesale price
before VAT
with VAT
transportation packing
- small box-145mm
Specifications
- used in
- КАМАЗ
- analog
- 0501210855
- mass
- 96 g
- screw-thread
- M18×1.5
- wrench size
- 27
- installation size
- 18.6 mm
- supply voltage range
- 6,5-30 VDC
- maximum consumption current
- 16 mA
- working gap range
- 0.5-2.4 mm
- measured frequency range
- 0-4 kHz
- direct and inverse outputs
- N type open collector switches
- nominal load current of outputs
- 1 mA
- compatible connector
- DIN 72585-1
- barcode
- short link
Output voltage, assuming the rated load resistance: is less or equal to 1.9 VDC for logical zero, is greater or equal to (Usupply−0.5) VDC for logical one.
