Penza Factory Electromechizmerenie (EMI)

Product: 6032.3829-01 SO

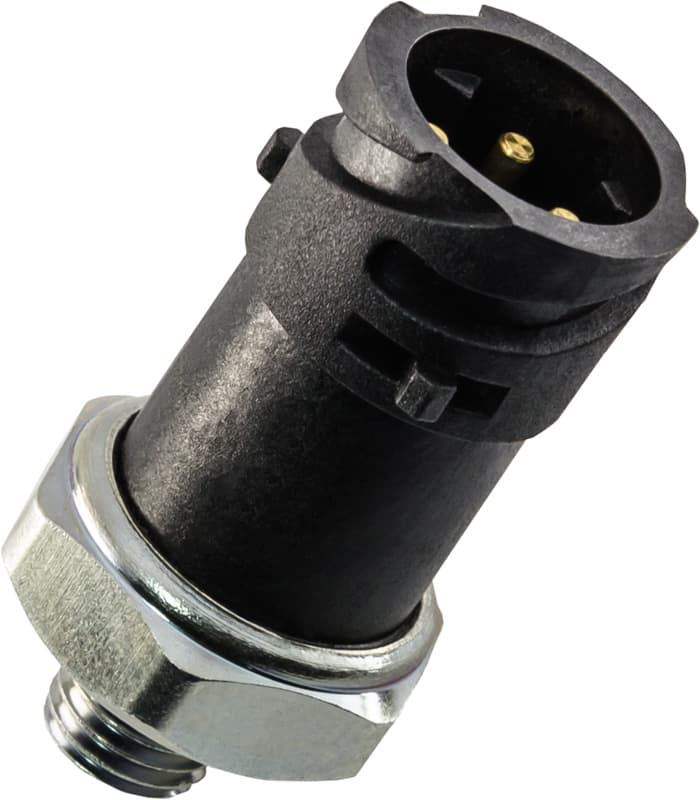

vacuum sensor with bayonet connector

Specifications

used in
customer’s equipment
contact
normally open (NO), can be manufactured as normally closed (NC)
trigger pressure
from −0.3 to −0.7 kgf/cm² upon request
current
from 0.02 to 0.5 A
mass
47 g
screw-thread
K1/4" GOST 6111 (NPT 1/4)
M14×1.5
M16×1.5
M18×1.5
spanner
27
nominal switching voltage
12 VDC, 24 VDC
